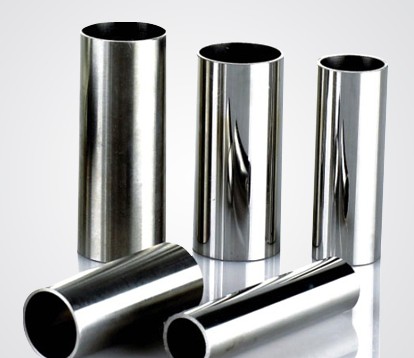

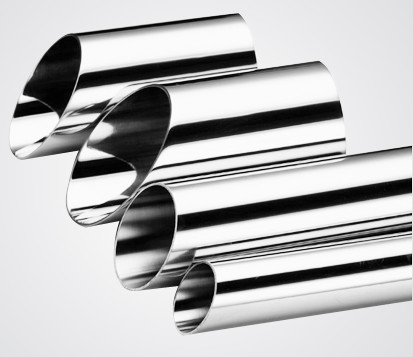

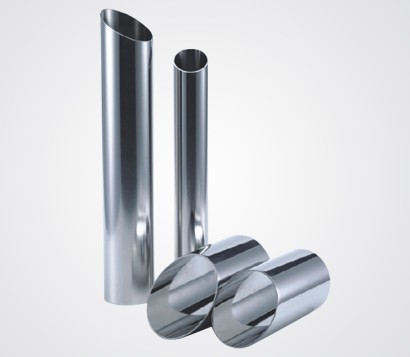

Sanitary Tube
Size:
ASTM A 790
| Outside diameter |
Thickness(mm) |
| (inch) |
(mm) |
1 |
1.5 |
2 |
2.5 |
3 |
| 3/4' |
19.1 |
|
|
|
|
|
| 7/8' |
22.2 |
|
|
|
|
|
| 1' |
25.4 |
|
|
|
|
|
| 1-1/8' |
28.6 |
|
|
|
|
|
| 1-1/4' |
31.8 |
|
|
|
|
|
| 1-1/2' |
38.1 |
|
|
|
|
|
| |
40 |
|
|
|
|
|
| |
45 |
|
|
|
|
|
| 2 |
50.8 |
|
|
|
|
|
| |
52 |
|
|
|
|
|
| 2-1/4' |
57.15 |
|
|
|
|
|
| 2-1/8' |
60.3 |
|
|
|
|
|
| 2-1/2' |
63.5 |
|
|
|
|
|
| |
70 |
|
|
|
|
|
| 3 |
76.2 |
|
|
|
|
|
| |
85 |
|
|
|
|
|
| 3-1/2' |
88.9 |
|
|
|
|
|
| 4' |
101.6 |
|
|
|
|
|
| 4-1/8' |
104.78 |
|
|
|
|
|
| 4-1/4' |
107.95 |
|
|
|
|
|
| 4-1/2' |
114.3 |
|
|
|
|
|
| 5-1/4' |
133.35 |
|
|
|
|
|
| 6-1/4' |
158.75 |
|
|
|
|
|
| 8-5/8' |
219.08 |
|
|
|
|
|
ISO2037;DIN11850
| ISO2037 |
OD |
21.30 |
25.40 |
33.70 |
38.10 |
40.00 |
50.80 |
63.50 |
70.00 |
76.30 |
88.90 |
101.60 |
114.30 |
139.70 |
168.30 |
| T |
1.00 |
1.20 |
1.20 |
1.50 |
1.50 |
1.50 |
2.00 |
2.00 |
2.00 |
2.00 |
2.00 |
2.00 |
2.00 |
2.60 |
| DIN11850 |
Nom.Size |
20.00 |
25.00 |
32.00 |
|
40.00 |
50.00 |
|
65.00 |
|
80.00 |
100.00 |
125.00 |
|
150.00 |
| OD |
23.00 |
29.00 |
36.00 |
|
41.00 |
54.00 |
|
70.00 |
|
85.00 |
104.00 |
129.00 |
|
154.00 |
| T |
1.50 |
1.50 |
1.50 |
|
1.50 |
1.50 |
|
2.00 |
|
2.00 |
2.00 |
2.00 |
|
2.00 |
Tolerances on dimensions table：
| Outside diameter |
Thickness |
Length |
| ＜25.40mm |
±0.13mm |
±10.00% |
OD＜101.60mm +3.20mm -0mm
OD≥101.60mm +4.80 -0mm |
| ≥25.40mm~50.80mm |
±0.20mm |
| ≥50.80mm~76.20mm |
±0.25mm |
| ≥76.20mm~101.60mm |
±0.38mm |
| ≥101.60mm~139.70mm |
±0.38mm |
| ≥139.70mm~203.20mm |
±0.76mm |
| ≥203.20mm~304.80mm |
±1.27mm |
Surface: Sanitary Surface
Standard：ASTM A 270;ISO 2037;DIN11850
Material：304/304L,316L,321,
409L,410,420,430,
UNS31803,USNS32205/2205,UNS32750/2507 etc.
|
